Motogadget Chronoclassic DarkEdition Speedometer

Motogadget Chronoclassic DarkEdition Speedometer

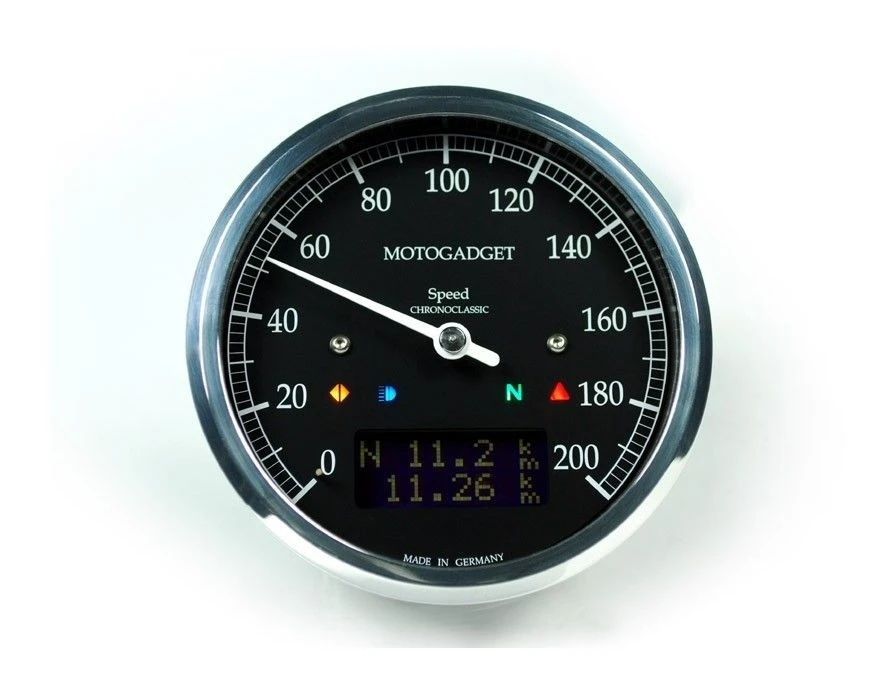

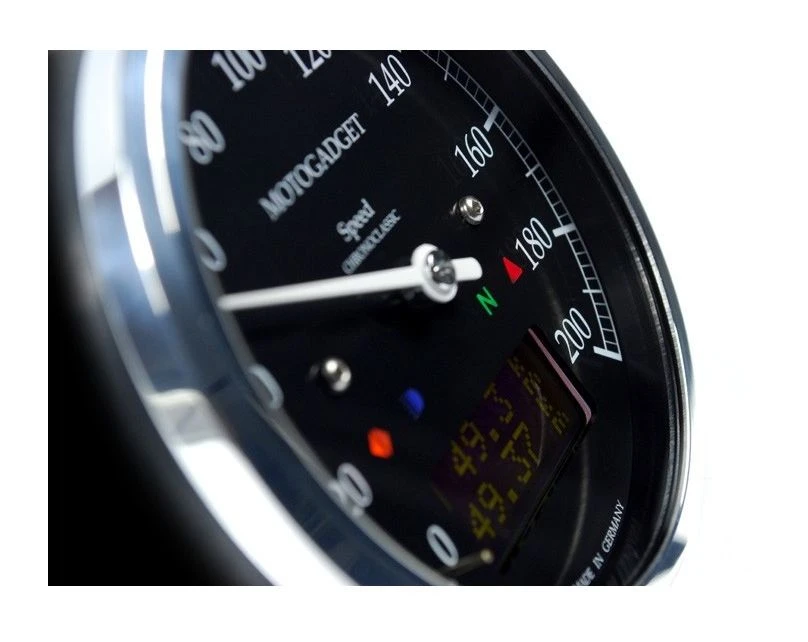

The Motogadget Chronoclassic is an analog speedometer with digital multi-purpose features in a classic round casing. With a Black dial and a White indicator the design resembles old Smiths brand instruments. This DarkEdition features a negative display LCD for more of a blacked out appearance.

Features:

• Analog speedometer dial driven by a precision stepper motor
• Displays: speed, average speed, max speed, rpm, max rpm, max positive acceleration (0-20.0 m/s2), max negative acceleration, gear indicator (1-6), trip meter, odometer (adjustable), battery voltage, air temperature (optional instead of water temp), oil temp 40-160°C (104-320°F) with high/low warning, oil pressure 0-8 bar (0-116psi) with high/low warning
• Indicator lights: turn signal, high beam, neutral, Red triangle for different warning functions either external (e. g. oil pressure switch) or internal (rpm, temperature, pressure, voltage)
• Adjustable contrast on LCD display
• Mounting diameter: 80mm (3.15″)
• Bezel diameter: 85mm (3.35″)
• Depth without cable fitting: 34mm (1.34″)
• Mounts via three M4 threaded holes on rear face
• Made in Germany

Includes:

• Instrument with 55cm (21.5″) connection cable
• Miniature push-button switch
• Stainless steel speedometer sensor (M5x0.5) with 150cm (59″) connector cable
• 2 neodymium mini magnets
• 3 M4 mounting screws with washers
• Detailed installation and operating instructions

Note: Mount, temperature and pressure sensors sold separately. The gear shift indicator is a mathematical function calculated from rpm and ground speed values and does not require any internal transmission sensors. The dark liquid crystal display achieves a very cohesive appearance however it is not as legible as a traditional Green LCD. This decrease in visibility is especially apparent in direct sunlight. If readability is of a primary concern, consider the standard Chronoclassic.
